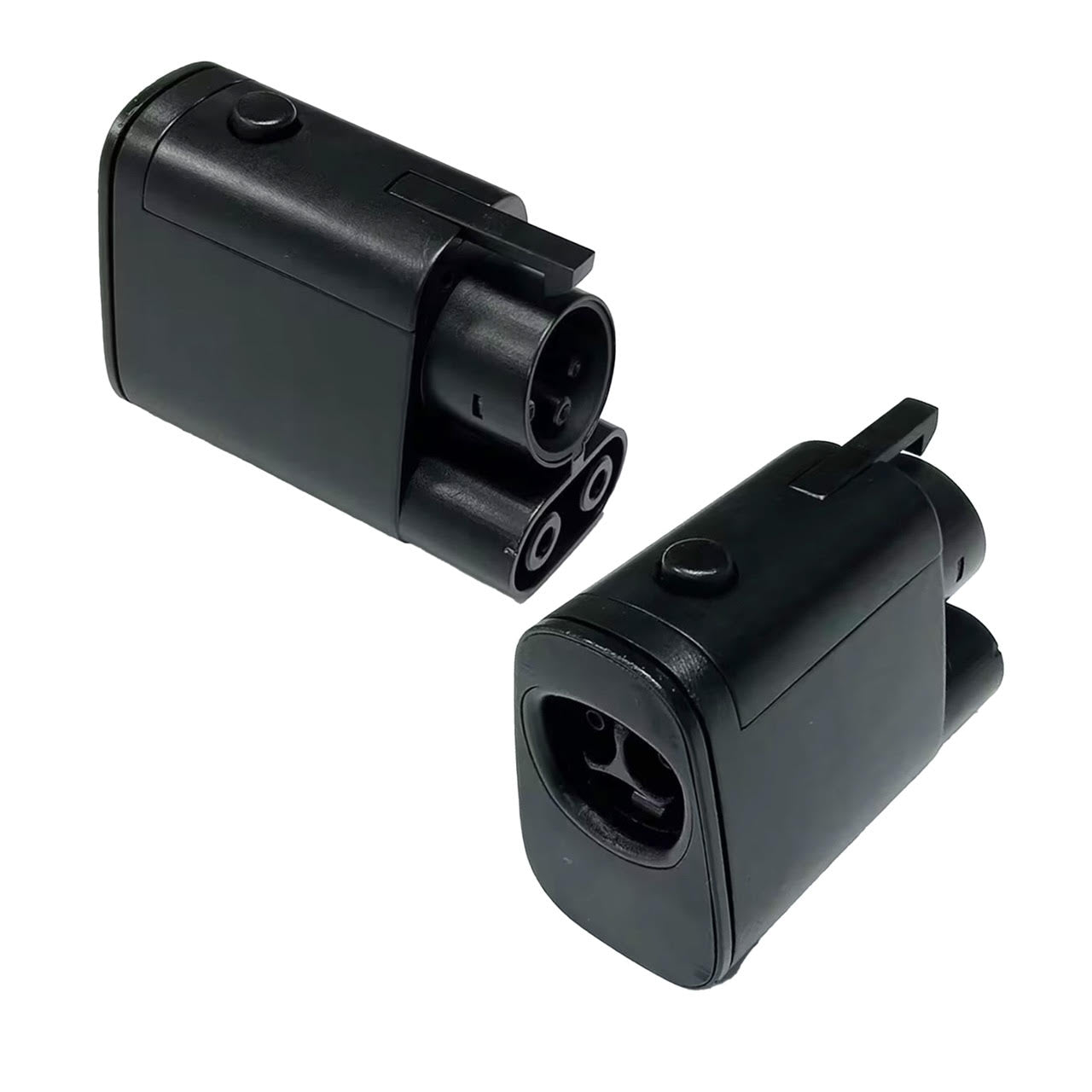

NACS (Tesla) to CCS1 Adapter for Tesla Supercharger

Specifications :

• Rated Amperage : 500A
• Rated Voltage : 100~1000VDC
• Conductor Material : silver plated copper
• Contact resistance : 5 mΩ
• Shell Material : UL-94-V0 PA66
• Operating Temperature : -30°C to 50°C
• Security : Dual 85ºC temperature sensor switch
• Sealing gasket : silicon rubber
• Locking : NACS lock requires to be engaged in order to charge - CCS side locks into the vehicle while charging
• Security : locks into the vehicle while charging
• Degree of protection : IP54 (mating)

Key Features :

• Power : rated for up to 500A.
• Safety and Security: The adapter locks in while charging, ensuring no unplanned disconnections or thefts. Includes an interlock safety pin preventing accidental removal of charging connector while charging. Unplug it with authorization from your car, phone or charging station's control panel and with an active locking mechanism.
• Protection : IP54 protection from dust and water. Includes a hard case.
• No restrictions : Compatible with V3 and V4 Tesla® Superchargers - NACS 3rd party DC chargers in North America.

Requirements :

• For CCS1 port equipped vehicles
• V3 and V4 Tesla® Superchargers (250kW and above)
• Any NACS level 3 (DC) charging station
• For Tesla® Superchargers, you will need a software update from your car's manufacturer in order to 'Plug & Charge'
